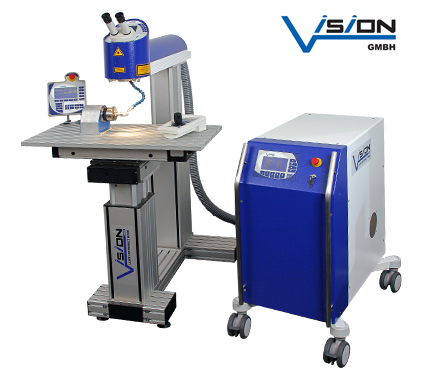

LWI IV FLEXX WORKSTATION
Call for Pricing.



Technical Specs
Beam Source Nd:YAG
Lamp Source Flash-lamp
Wavelength 1064 nm
Operating mode Pulsed laser system
Max. Avg. Output 120 W
Max. Power 80 Joules
Max. Peak Power 10 kW
Spot diameter .005
Focal Length 190 mm
Pulse Length 0.5 - 20 ms
Pulse Frequency Single pulse up to 20 Hz
Pulse Fill Mode 10 - 100%
Microscope Leica top with 20x eyepieces



  LASER GENERATION IV – INNOVATION FOR THE FUTURE
The LWI IV FLEXX Workstation belongs to the newest Laser Generation IV and is the consequential development of the previous series. Innovative laser technology for modern industry – the LWI IV FLEXX Workstation from Vision guarantees a broad spectrum of applications through a wide variety of combination possibilities.

Whether you need a laser welding machine for standard solutions or individualy specialized configuration, single component or series production. This machinge will work for you. Based on your needs we have the ability to develop individual automation proposals and complete turn-key solutions for all processes resulting in optimized processing times and maximum efficiency.

The innovative VISION laser technology in the LWI IV FLEXX Workstation offers flexible solutions for individual applications. Customer-specific modifications can be easily made at any time, from spot diameter and focus length to pulse modulation and handling systems.

Its freely positionable working platform makes the LWI IV FLEXX Workstation suitable for use both as a conventional, manual workstation, and as a motor-driven workstation for larger workpieces. It can also be used as a partially or fully automated systems with up to five axes, allowing you flexibility for every situation!

The interface of the LWI IV FLEXX Workstation allow it to be integrated into already existing product lines. This means you retain the best possible protection on your investment even while the range of uses is continually being expanded.

Of course we can only give you an overview here of the many different possibilities that a high-performance laser such as the LWI IV FLEXX Workstation offers you in everyday use. If you have any additional questions, or would like us to come to your shop for a demonstration please feel free to contact us at 847.487.1945 or through email at info@alliancelasersales.com
