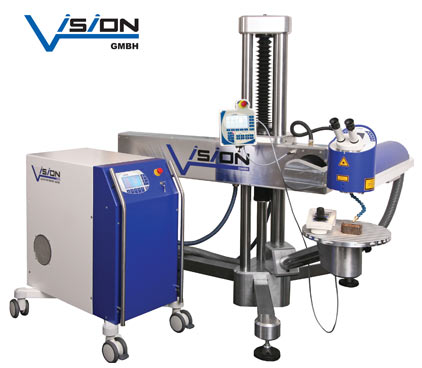

| Unix III for Mold Repair |
| Call for pricing. |
| |
|
| |
| Technical Specs |
| Beam Source |
Nd:YAG |
| Lamp Source |
Flash-lamp |
| Wavelength |
1064 nm |
| Operating mode |
Pulsed laser system |
| Max. Avg. Output |
120 W |
| Max. Power |
80 Joules |
| Max. Peak Power |
10 kW |
| Spot diameter |
.005 |
| Focal Length |
190 mm |
| Pulse Length |
0.5 - 20 ms |
| Pulse Frequency |
Single pulse up to 20 Hz |
| Pulse Fill Mode |
10 - 100% |
| Microscope |
Leica top with 20x eyepieces |
| |
|
|
|
|
|
| |
|
|
| |
BUILT FROM THE GROUND UP WITH THE MOLD MAKER IN MIND.
Ergonomically redesigned for comfort over long periods of use, the Unix III features an adjustable removable base for easy application to any size job. A wide travel range of the X-Y stages, allows you to work on large areas without having to reposition the part.
The Unix III is the only machine of its kind offering high grade automated control, laser movement synchronization, laser-marking technology, and a state-of-the-art teach-in program providing automatic driving of the most complex 3D geometries.
Of course we can only give you an overview here of the many different possibilities that a high-performance laser such as this offers you in everyday use. If you have any additional questions, or would like us to come to your shop for a demonstration please feel free to contact us at 847.487.1945 or through email at info@alliancelasersales.com |
|
| |
|
|
|
|
|
|
|
|
